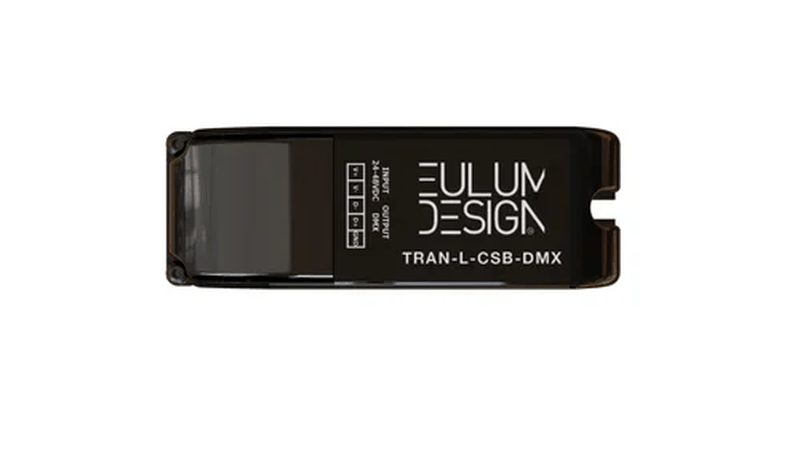

TRAN-L-CSB-DMX 8-Channel DMX Controller

Casambi to DMX512A translator, 8 channels

A protocol translator that puts DMX fixtures onto a Casambi network. Wireless commands come in over the Casambi mesh and go out as DMX512A across eight channels, with the start address set in the app rather than on a dip switch. Four selectable profiles cover eight independent sliders, colour-tunable control, and two RGBW fixtures driven either as sliders or from a colour wheel — so the same hardware suits an architectural wash, a tunable installation or a pair of colour fittings.

8 channels of DMX512A from a Casambi network
Start address configurable in the Casambi app — no dip switches
Four profiles: 8 independent sliders, colour-tunable, 2× RGBW sliders, RGBW colour wheel
75 m wireless range, or 200 m in Casambi Long-Range mode
16.6 kV ESD protection on the DMX output
Wireless beacons supported
Remote antenna configuration available
24–48 VDC input, 44 g, screw-down mounting

Enquire about this product More dimmers

Technical specification

Part number	TRAN-L-CSB-DMX
Type	Casambi to DMX protocol translator
DMX protocol	DMX512A using 3.3 V RS422
Channels	8
Start address	Configurable in app; uses 8 consecutive addresses from the start
Output protection	16.6 kV ESD
Input voltage	24 – 48 VDC
Max current	50 mA
Wireless protocol	Casambi wireless mesh
Operating frequency	2.4 – 2.483 GHz
Max output power	+8 dBm
Wireless range	75 m, or 200 m in Casambi Long-Range mode
Profiles	TRAN-L-CSB-DMX, -2750 (tunable), -C (2× RGBW sliders), -RGBW (colour wheel)
Housing	Black injection moulded ABS
Dimensions	103 × 35 × 28 mm
Weight	44 g
Mounting	Screw-down
Protection	IP20
Ambient temperature	0 … +50 °C
Max case temperature	+75 °C
Storage temperature	−40 … +80 °C
Max relative humidity	80 % non-condensing
Wire range	0.2 – 1.5 mm², 5 mm strip length

Two things to plan for: the stated 200 m is Long-Range mode in open air and drops indoors, so do not size a job on it. And a metal enclosure will cut the signal badly — if the unit has to go in one, specify the remote antenna option.

Specification taken from the manufacturer datasheet and subject to change without notice. Confirm against the current datasheet before ordering.
