Sentry Pack

Name: FRANKCAS Sentry Pack
Brand: FRANKCAS
SKU: FC-EL-PK

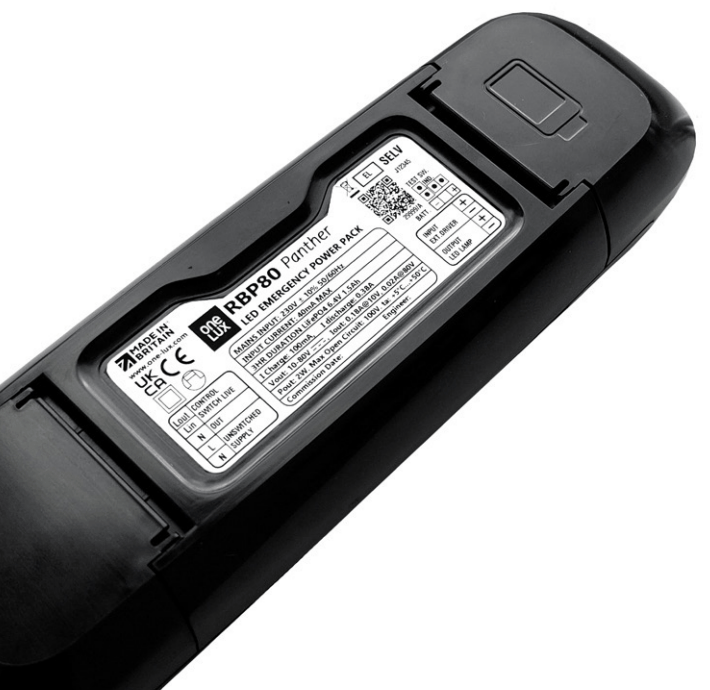

Emergency conversion pack — 2 W or 4 W, 10–200 V DC LED output

A remote emergency pack that converts an existing LED luminaire rather than replacing it. It drives LED arrays from 10 to 200 V DC, so in most cases the fitting already on the ceiling can be brought into the emergency scheme without separate emergency LEDs. The housing goes in through a 72 mm cut-out, with screw-less cord grips and hinged end covers for wiring. Available in DALI-2 self-test or Casambi wireless.

Specified with FRANKCAS X3. Both control versions are built for automatic testing: the DALI-2 version reports to X3 Direct over the emergency DALI line, and the Casambi version joins the wireless mesh. X3 then runs the EN 62034 calendar, logs every result to the BS 5266-1 logbook and emails you when a fitting fails. See the X3 controller.

Converts an existing LED panel or downlight — no emergency LEDs needed
LED output 10–200 V DC, 2 W or 4 W emergency power
Installs through a 72 mm ceiling cut-out; internal screw fixings provided
Screw-less cord grips and hinged snap-down end covers
Green charge indicator LED on 500 mm leads with bezel
Works with a separate mains driver for maintained operation
Options for 3-pole isolation of lamp and mains driver in emergency

FRANKCAS datasheet
PDF · 317 KB

Enquire about this product More emergency lighting

Ordering information

Part number	Control · description
FC-EL-PK2-D2	DALI-2 self-test · 2 W, 10–80 V DC, 1.5 Ah battery
FC-EL-PK4-D2	DALI-2 self-test · 4 W, 10–80 V DC, 3.6 Ah battery
FC-EL-PK4H-D2	DALI-2 self-test · 4 W, 80–200 V DC, 1.5 Ah battery
FC-EL-PK2-CW	Casambi wireless · 2 W, 10–80 V DC, 1.5 Ah battery
FC-EL-PK4-CW	Casambi wireless · 4 W, 10–80 V DC, 3.6 Ah battery
FC-EL-PK4H-CW	Casambi wireless · 4 W, 80–200 V DC, 1.5 Ah battery

Technical specification

Input supply	230 V ±10%, 50/60 Hz
LED output	10 – 200 V DC
Emergency power	2 W or 4 W
Rated duration	3 hours
Battery	1.5 Ah / 3.6 Ah 6.4 V LiFePO4
Ambient temp.	+5 … +50 °C
IP rating	IP20
Dimensions	230 × 70 × 40 mm
Cut-out	72 mm diameter
Conductor size	0.2 – 2.5 mm²
Weight	0.3 kg (2 W) / 0.4 kg (4 W)
Standards	EN 60598-1 and EN 60598-2-22 (luminaires for emergency lighting) · EN 50172 / BS 5266-1 (emergency escape lighting systems) · EN 62034 (automatic test systems) · EN 61347-1 and EN 61347-2-7 (emergency driver) · EN 55015, EN 61000-3-2 and EN 61547 (EMC) · EN 62386 and DALI-2 Part 202 for the DALI-2 self-test version · RoHS.

Product standards as applicable to the luminaire and its emergency driver. Declarations of conformity available on request. Specification subject to change without notice. Installation must be carried out by a competent person to BS 7671, with the system designed to BS 5266-1 / EN 50172.
